Portfolio

Examples of our work

Every project starts with data that preserves the artist's original intent. Tap any image to view it full size.

Great Seal of the United States

Scanned from a 20" original, remastered, scaled to 84" and CNC routed by IBILD for the U.S. Mission to the United Nations.

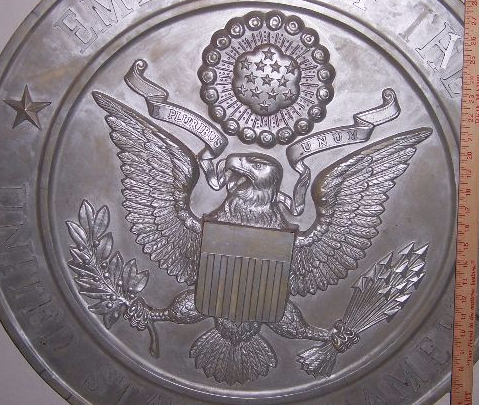

Original 20 inch Great Seal pattern — Original artwork
20" original pattern.

Great Seal scan data — Scan data
Background parsed from the relief. The shield, glory and ribbon lettering were completely rebuilt for machining.

Finished bronze-coated Great Seal — CNC machined in HDU & coated
Scaled to 84" and routed in 18# Duna Corafoam, then bronze coated by the finishers.

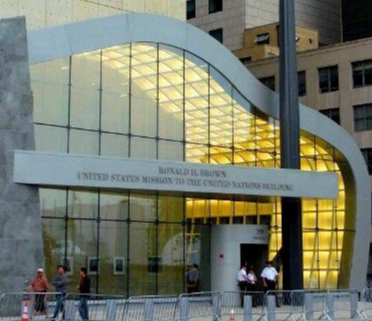

Ronald H. Brown U.S. Mission to the United Nations building — State Dept mission to the UN
Installed at the Ronald H. Brown U.S. Mission to the United Nations, Midtown Manhattan.

Fogo de Chão Churrascaria, Boston

A radiused pocket door, machined by IBILD.

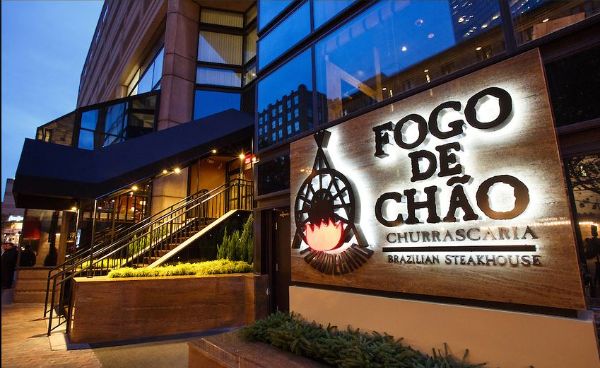

Fogo de Chao Boston restaurant — Fogo Boston

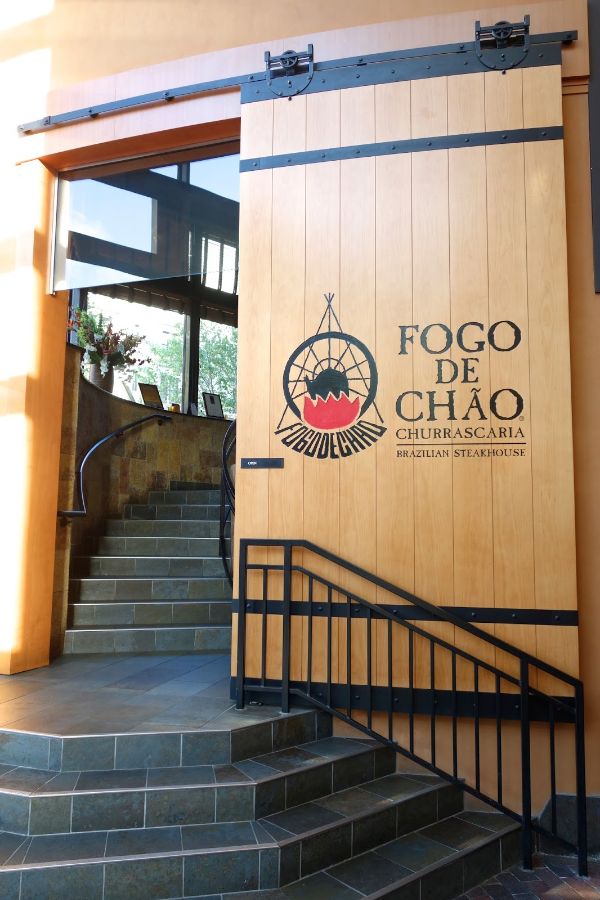

Radiused carved pocket door — Radiused pocket door

Door front machined by IBILD — Machined by IBILD

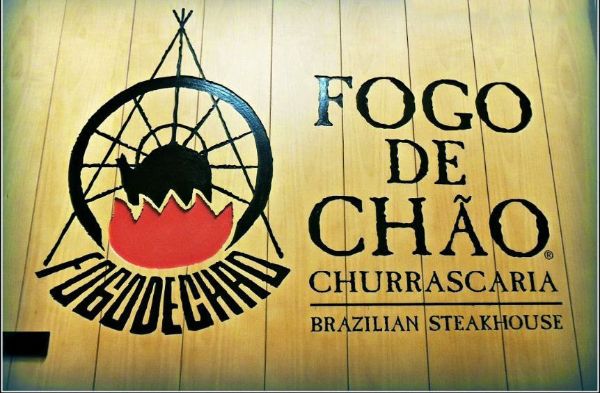

Detail of the Fogo de Chao entrance — Detail

French Carousel Themed Theatre Room

In collaboration with Gabriel McKeagney of Architectural Furnishings in CA.

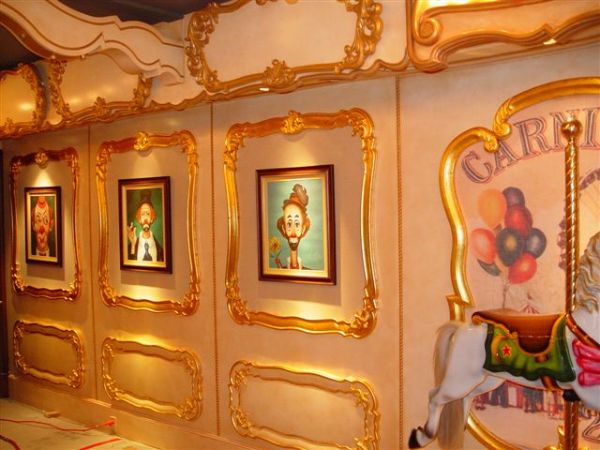

Completed French carousel themed theatre room — Completed theatre
All 3D reliefs were created from 2D sketches, 3D scans and digitally sculpted from scratch.

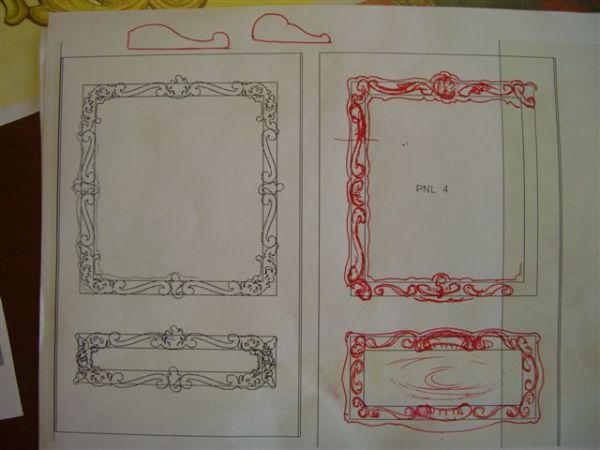

Conceptual drawings for the theatre reliefs — Conceptual drawings
IBILD matched the design intentions exactly and translated the concept into 3D.

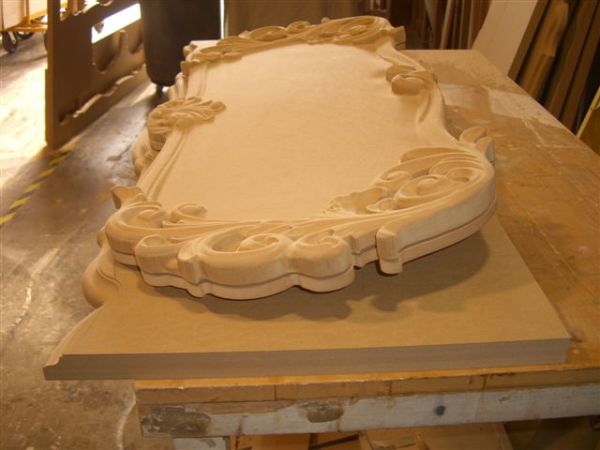

Sample carved relief — Authentic aesthetic
Every detail of the sample reliefs captured, preserving the look, feel and warmth of the motif.

High density scan data of a relief — Real data for real work
High-density data for perfect replication, ideally suited for CNC machining.

Christopher Newport University

A 72" brass floor inlay for the Paul & Rosemary Trible Library rotunda.

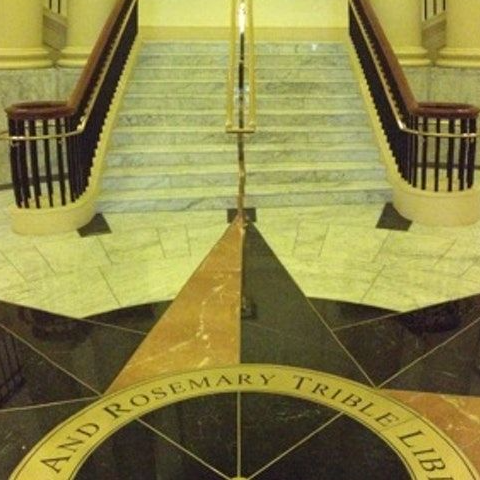

Christopher Newport University seal design — 72" brass floor inlay

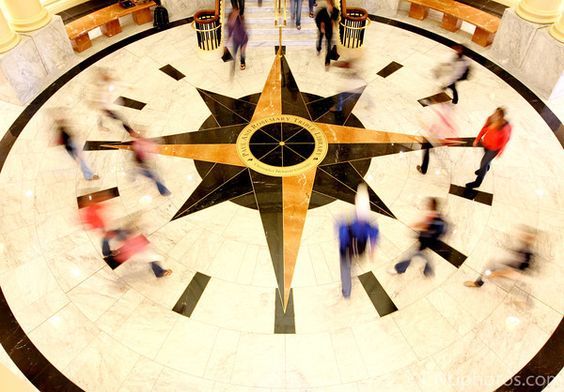

Brass floor inlay installed in the library rotunda — Library rotunda

Paul and Rosemary Trible Library rotunda — Paul & Rosemary Trible Library

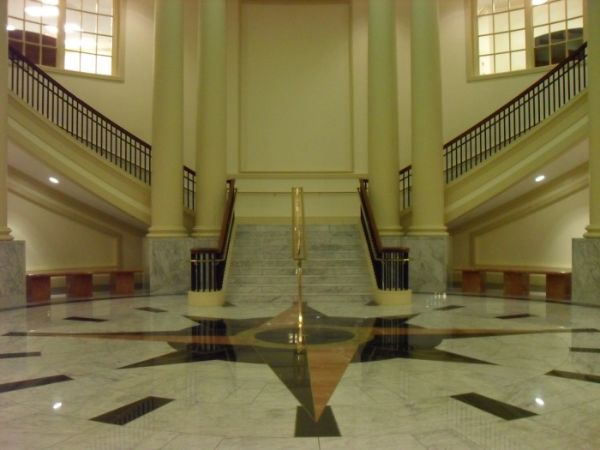

Library stairs at Christopher Newport University — Christopher Newport University

Starbucks Downtown Disney

IBILD worked closely with Cherrylion Studios and Oak Branch Manufacturing in Atlanta to complete this project.

Completed Starbucks relief installation — Completed project
Installed at the Downtown Disney location.

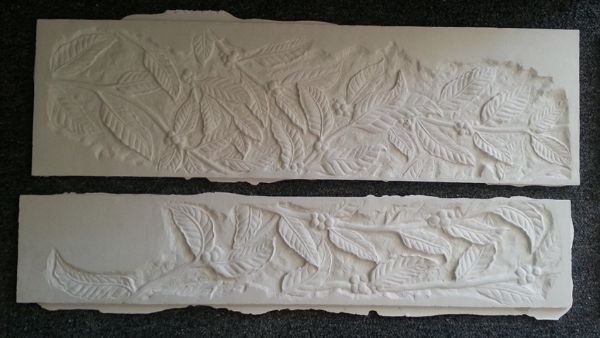

Original clay sculpture panels — Original sculpture
Clay original cast in plastic, scanned, scaled up and sent to Oak Branch for CNC routing.

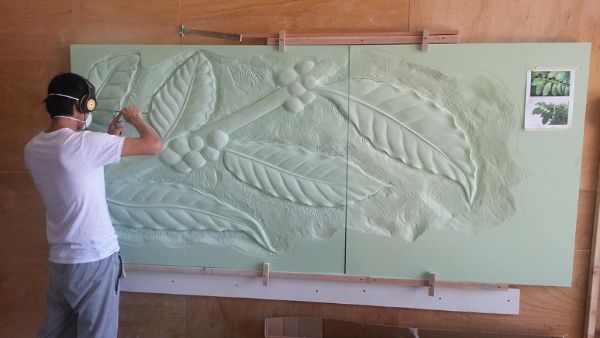

Hand carving the CNC routed reliefs — Final touch
Routed reliefs hand carved with a slight undercut for more visual impact.

Finished carved relief of leaves and flowers — The result
Finished and installed by Oak Branch at Downtown Disney.

Automotive Restoration Parts

Scarce, fragile parts can be digitally captured and archived or used for reproductions.

Classic car (photo courtesy of Jeff Koch) — A second chance
Restoration-quality parts for classic cars are hard to find when originals are fragile.

Original automotive part assembly — Preserved in time
Digitally captured for archival purposes, and ready for manufacturing.

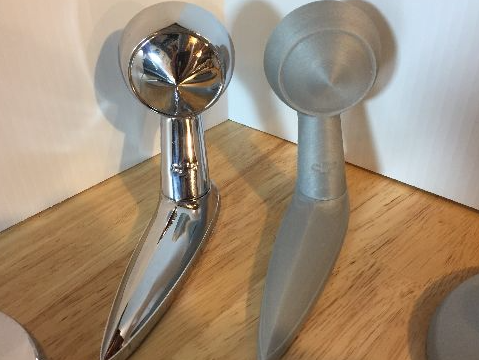

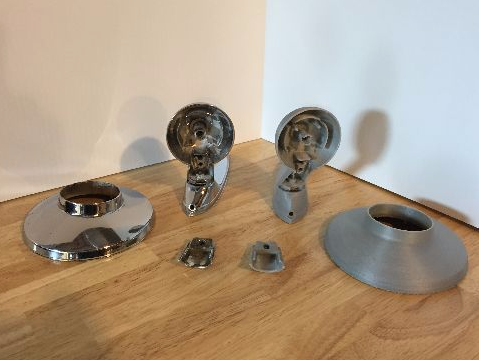

3D printed part next to the original — A perfect fit
Proofed on an FFF 3D printer; printed and original parts interchange perfectly.

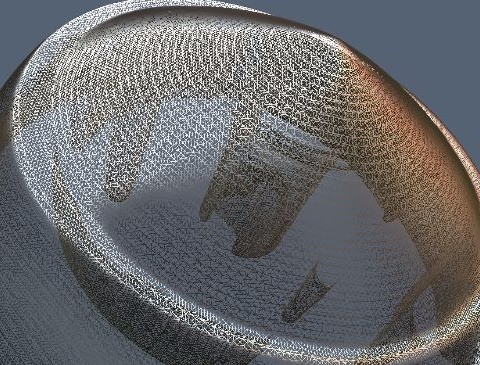

Scanned mesh of the automotive part — Clean, dense data
CNC and 3D print ready.

1931 Lincoln Ornament Preservation

Every detail of a rare greyhound hood ornament, captured, repaired and made print-ready.

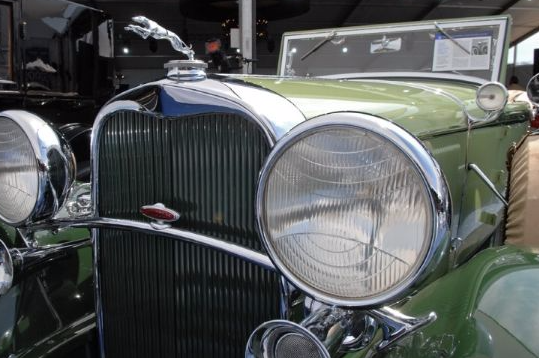

1931 Lincoln LeBaron — 1931 Lincoln LeBaron

Lincoln greyhound hood ornament — Greyhound ornament
Vandals often snapped off the tail, so prime examples are rare.

Scan of the greyhound ornament — Archived
Subtle rib features and blemishes captured; blemishes easily repaired digitally.

3D printed greyhound ornament — Watertight
Clean, watertight models ready for your slicer.
